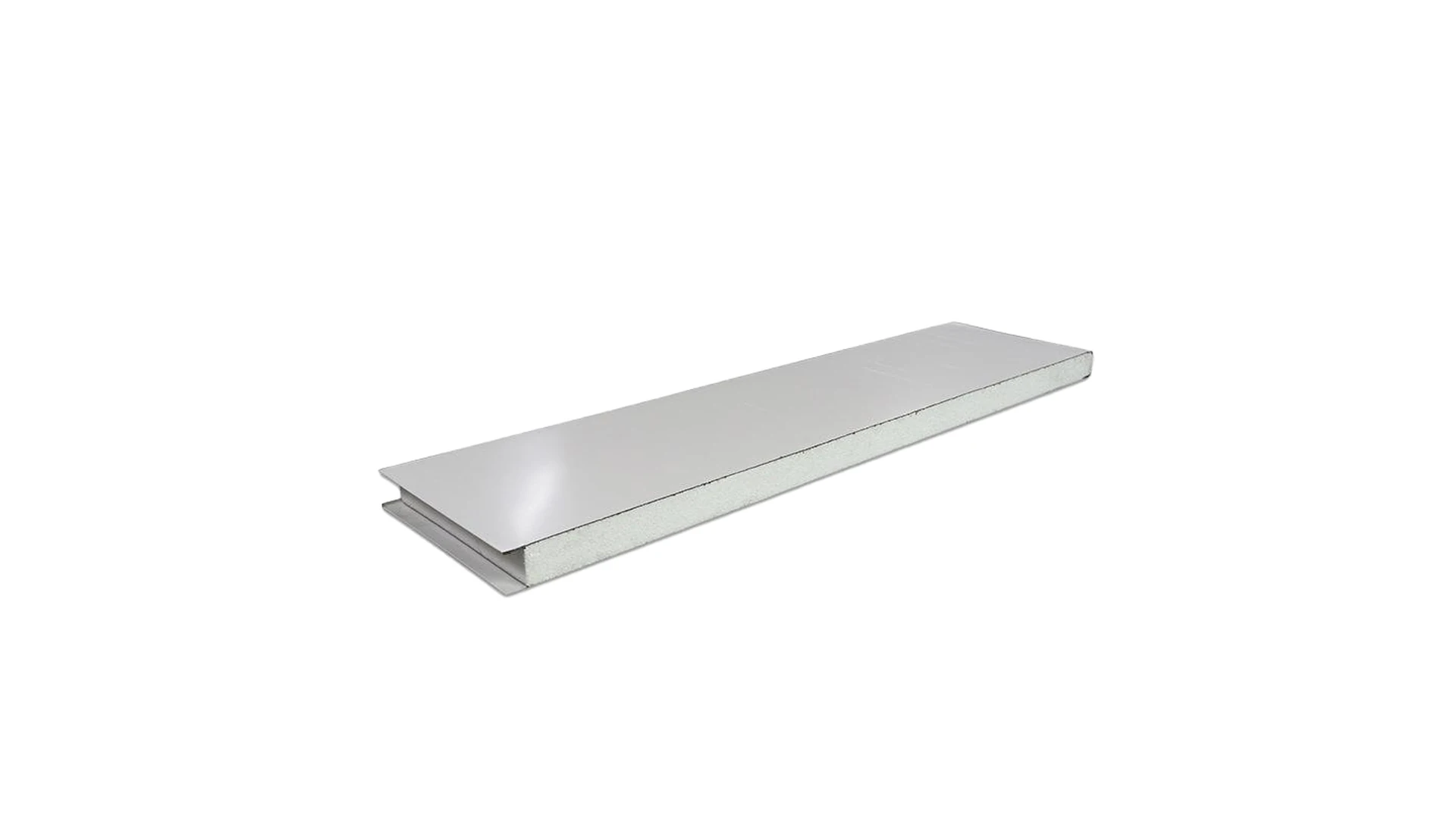

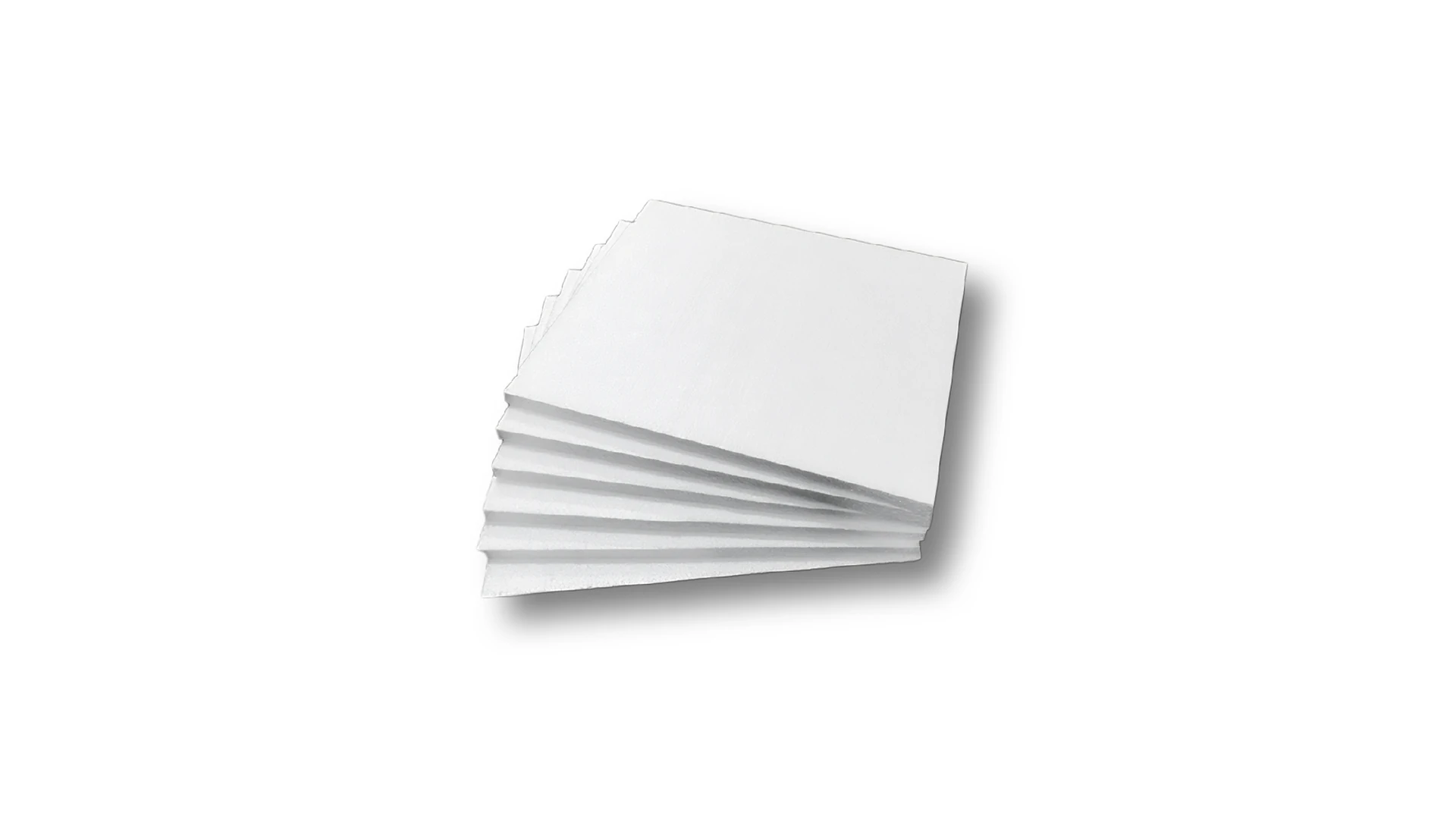

EPS Wall Panel
Envelope · Wall Cladding
Wall Cladding
Insulated sandwich panels and single-skin profiled sheeting for the building façade.
Insulated
Insulated Panels
Sandwich panels with a mineral, glass-wool, EPS or PU core — thermal and fire performance built in.

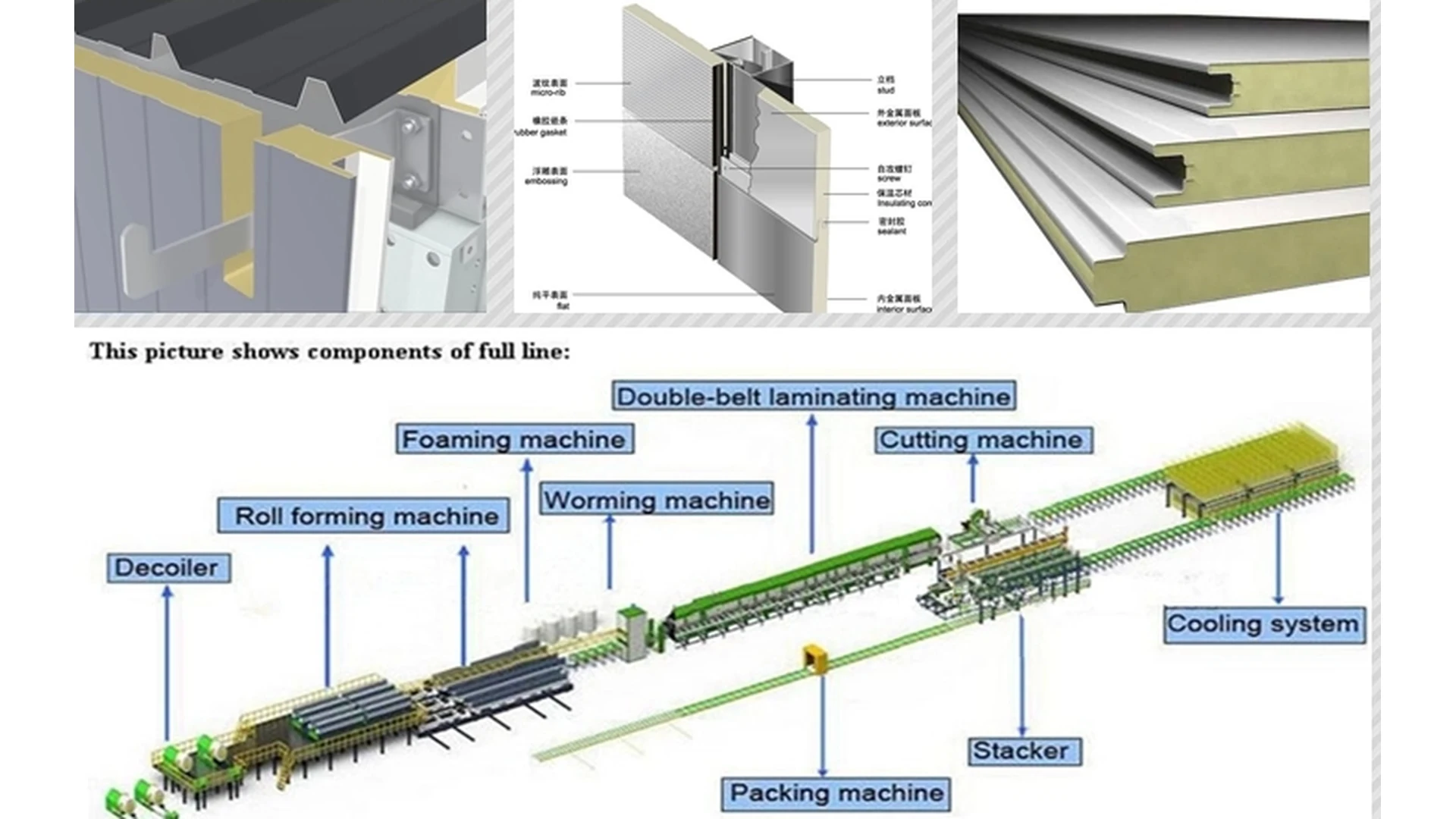

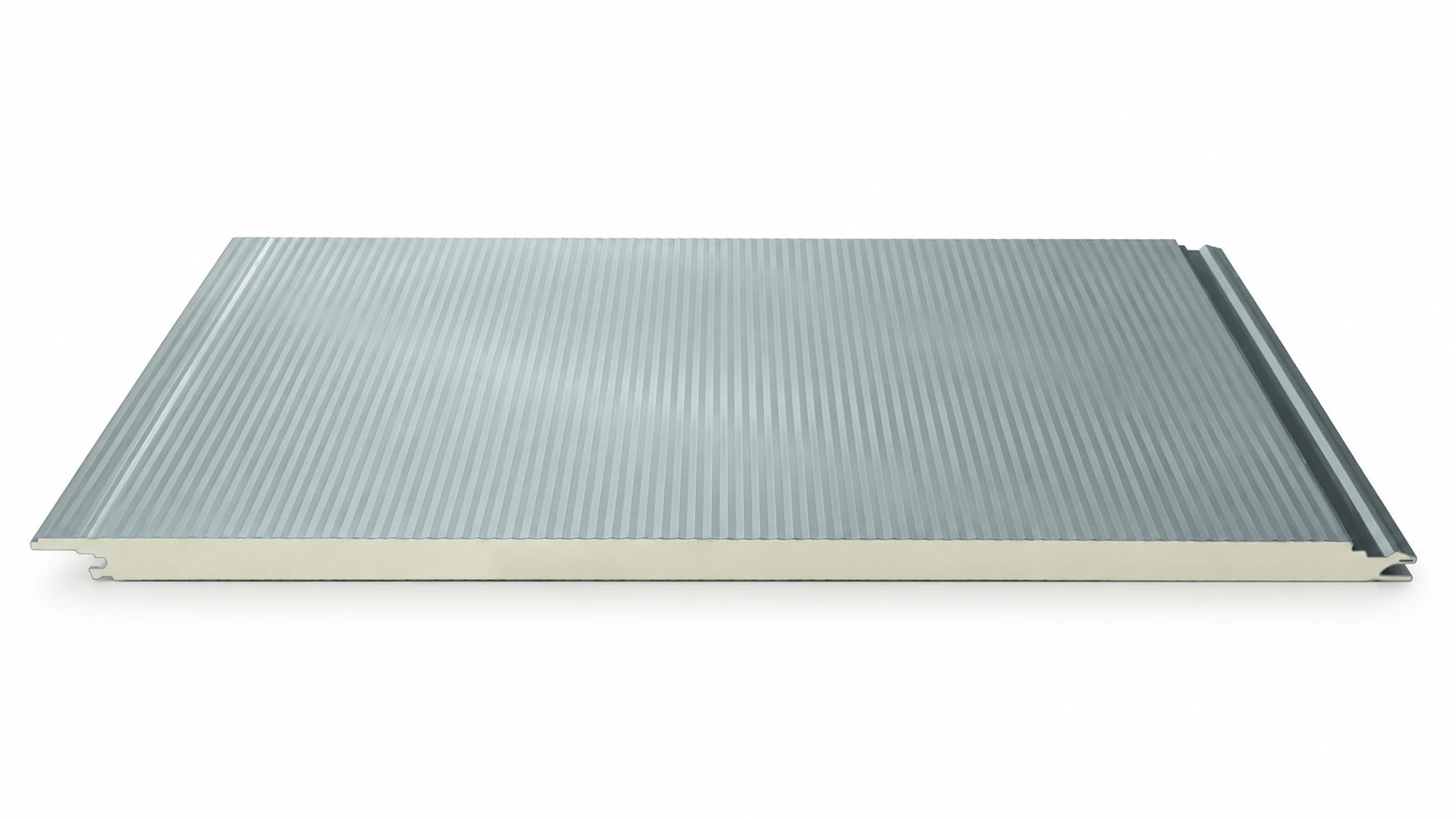

PIR Cold Storage Wall Panel

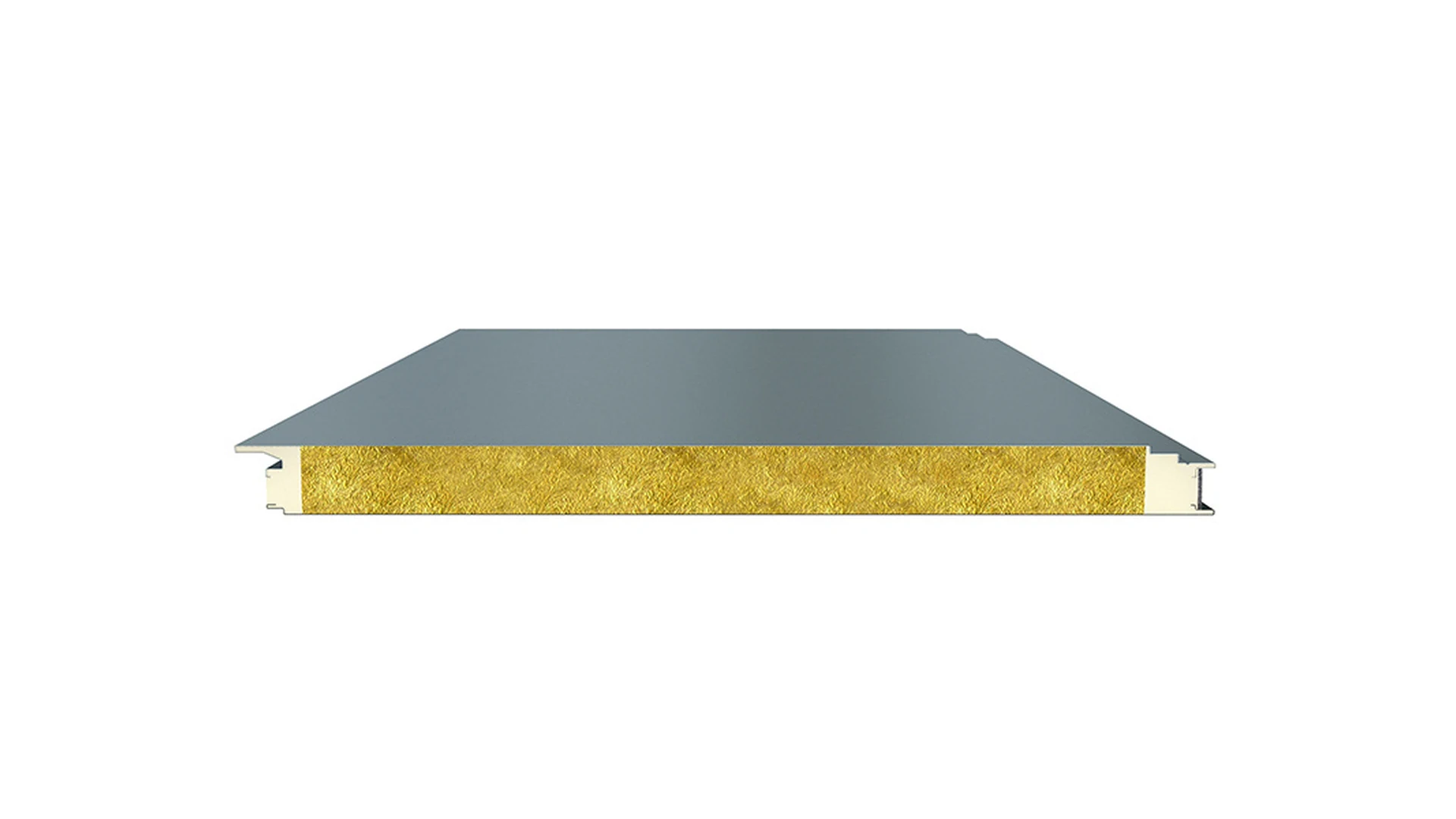

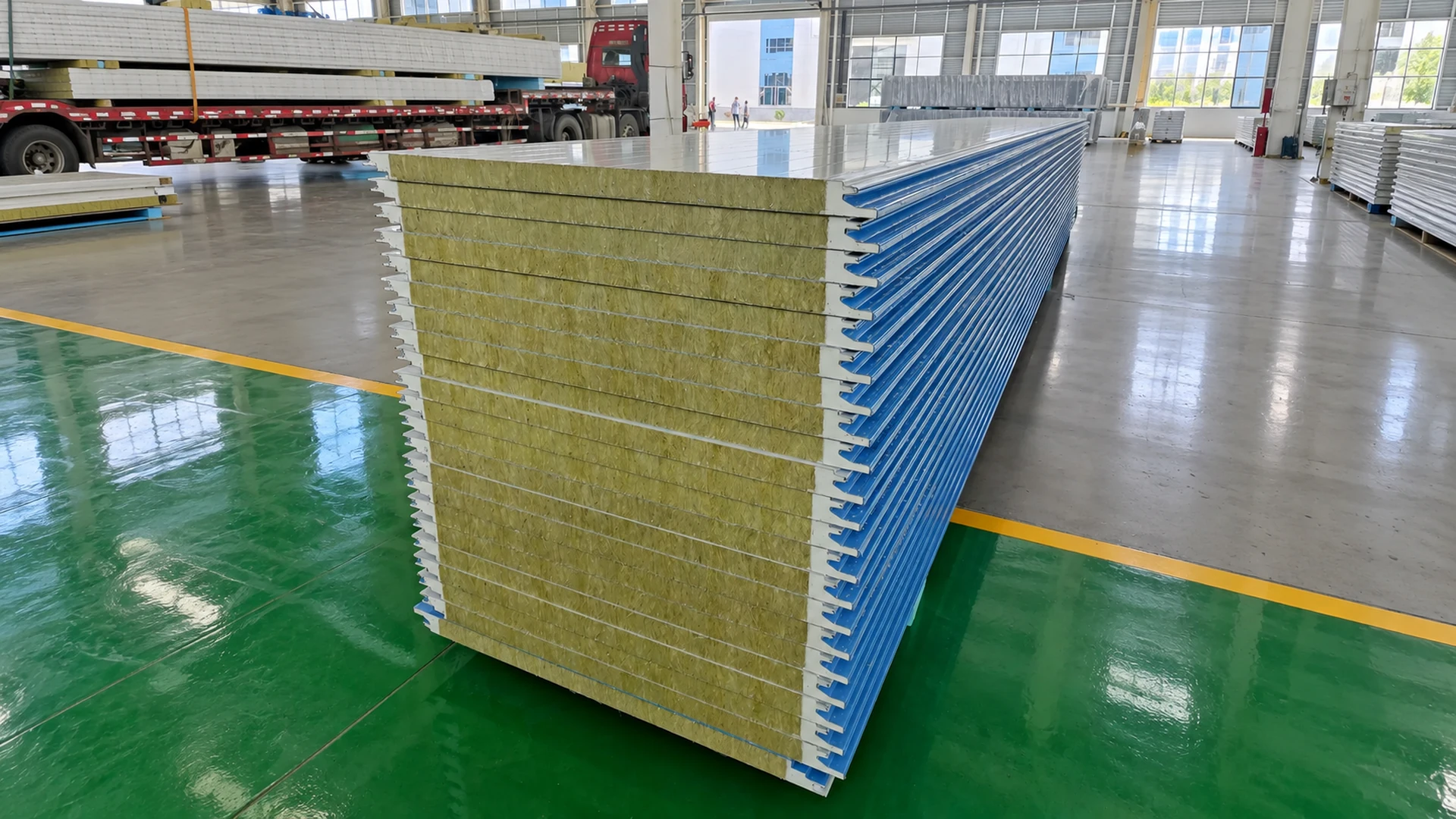

PU Edge-Sealed Wall Panel

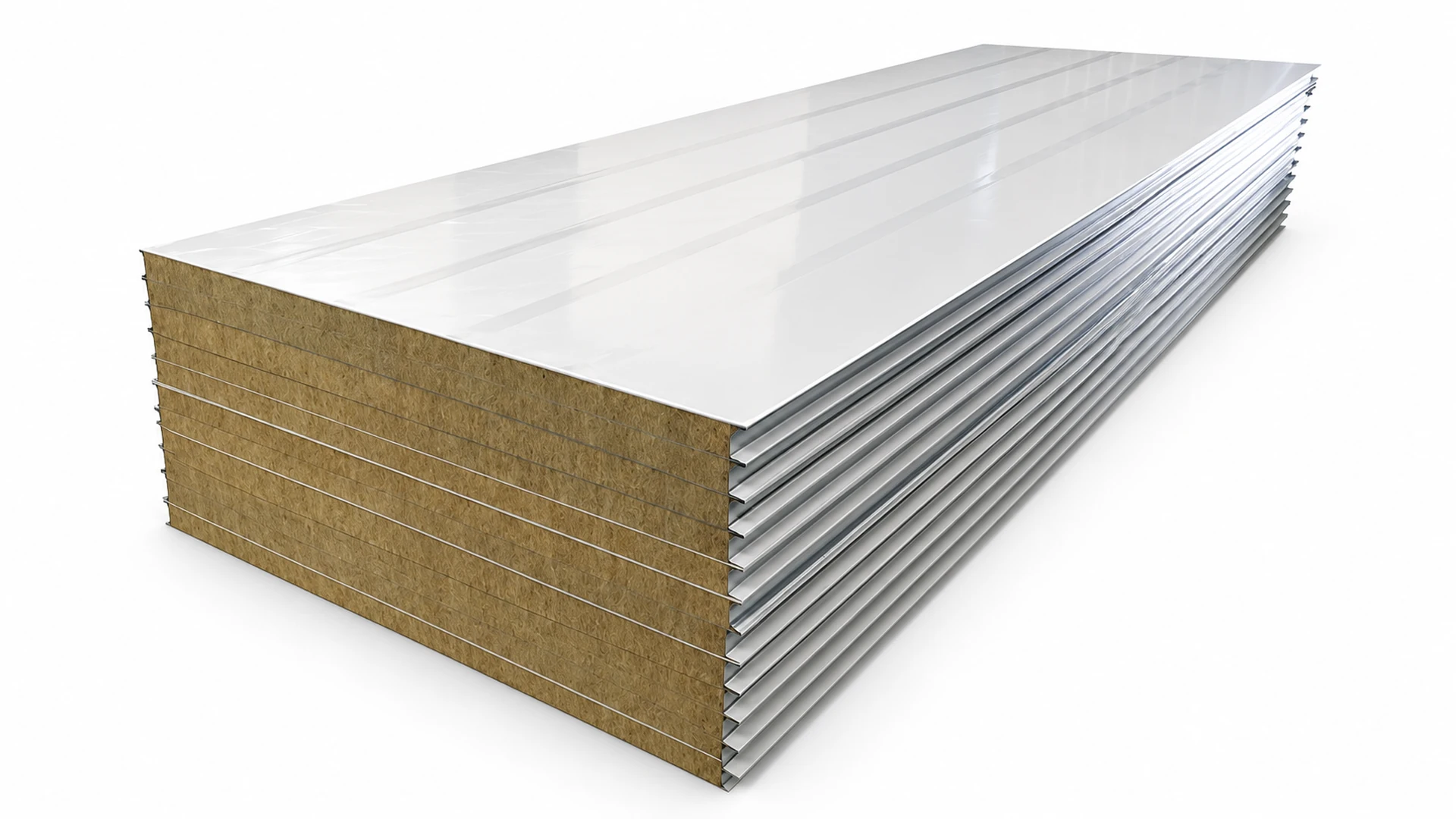

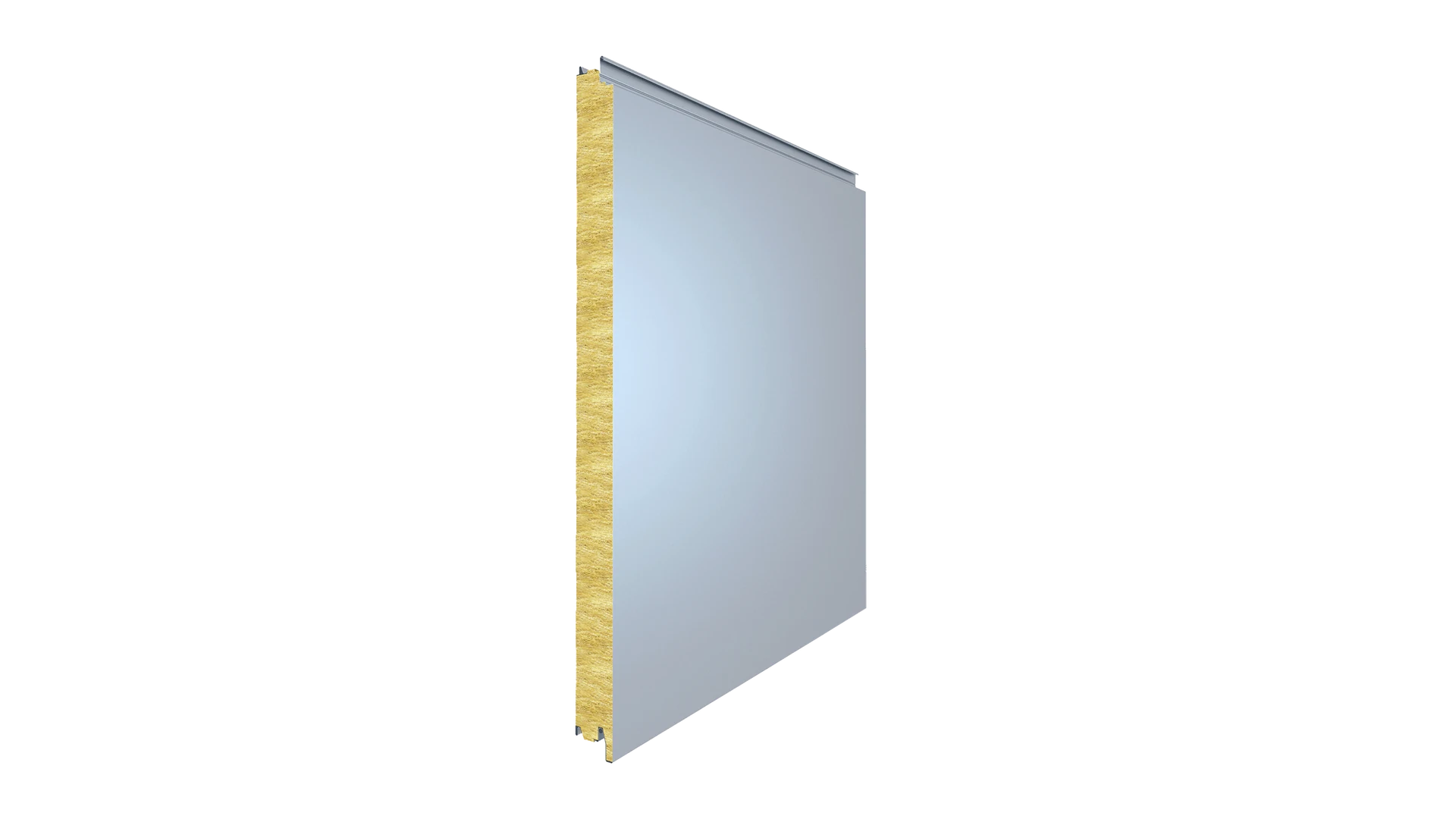

Rockwool Wall Panel
Certification:
Single-skin
Profiled Sheeting
Single-skin profiled cladding — choose by rib height, pitch and effective cover.
| Model | Rib h. mm | Pitch mm | Eff. width mm | Thickness mm | Application |
|---|---|---|---|---|---|
| YX15-225-900 | 15 | 225 | 900 | 0.3–0.6 | Wall / low-slope roof |
| YX18-63.5-825 | 18 | 63.5 | 825 | 0.3–0.6 | Wall (corrugated) |
| YX25-210-840 | 25 | 210 | 840 | 0.4–0.6 | Wall / roof |
All profiles available galvanized (Z), Galvalume (AZ150) or pre-painted (PE / PVDF); coating Z60–Z275. Lengths cut to order.
