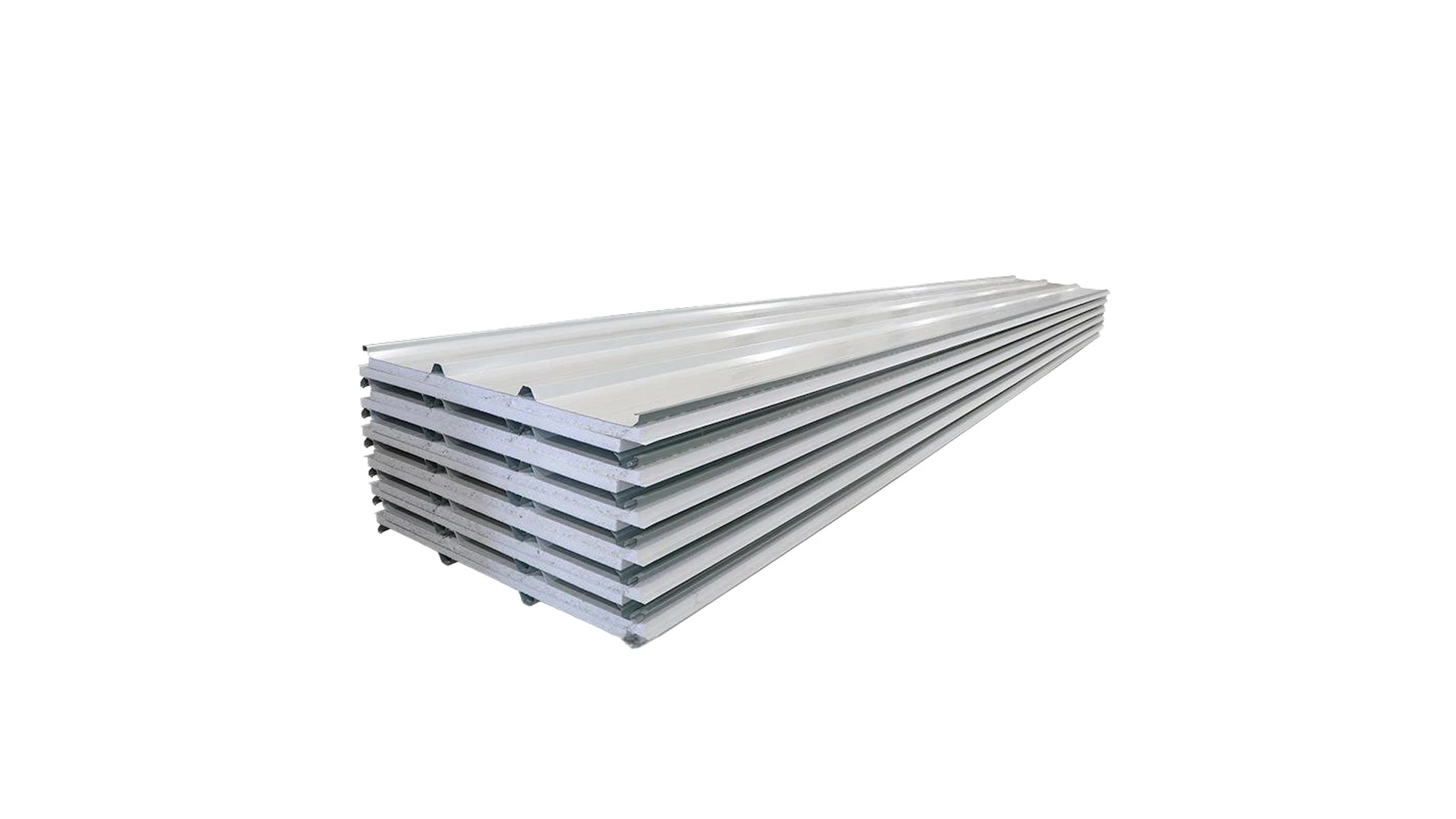

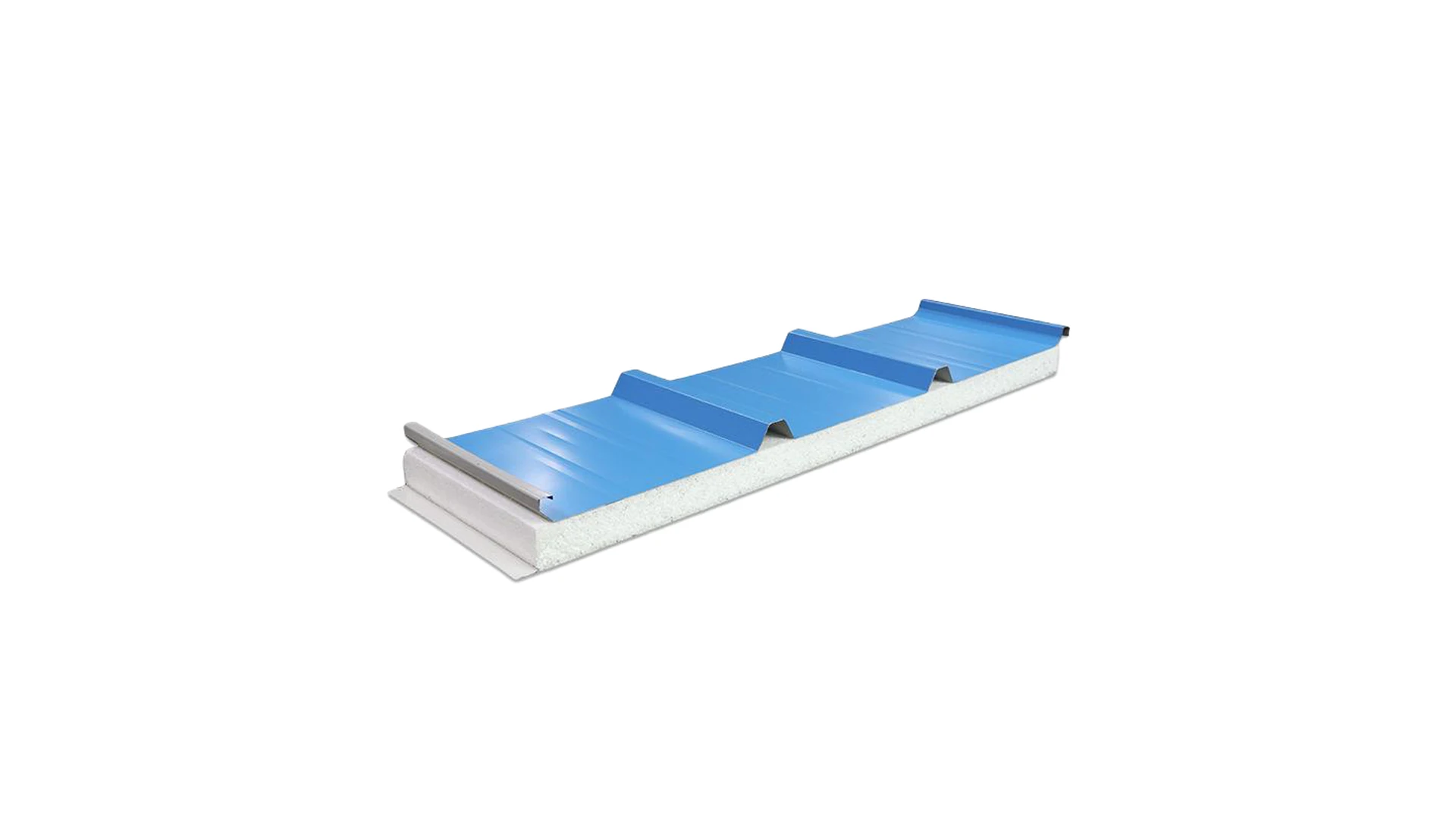

EPS Roof Panel
Envelope · Roof Cladding
Roof Cladding
Insulated sandwich panels and single-skin profiled sheeting — built to spec, shipped factory-direct.
Insulated
Insulated Panels
Sandwich roof panels with a mineral core — thermal and fire performance built in.

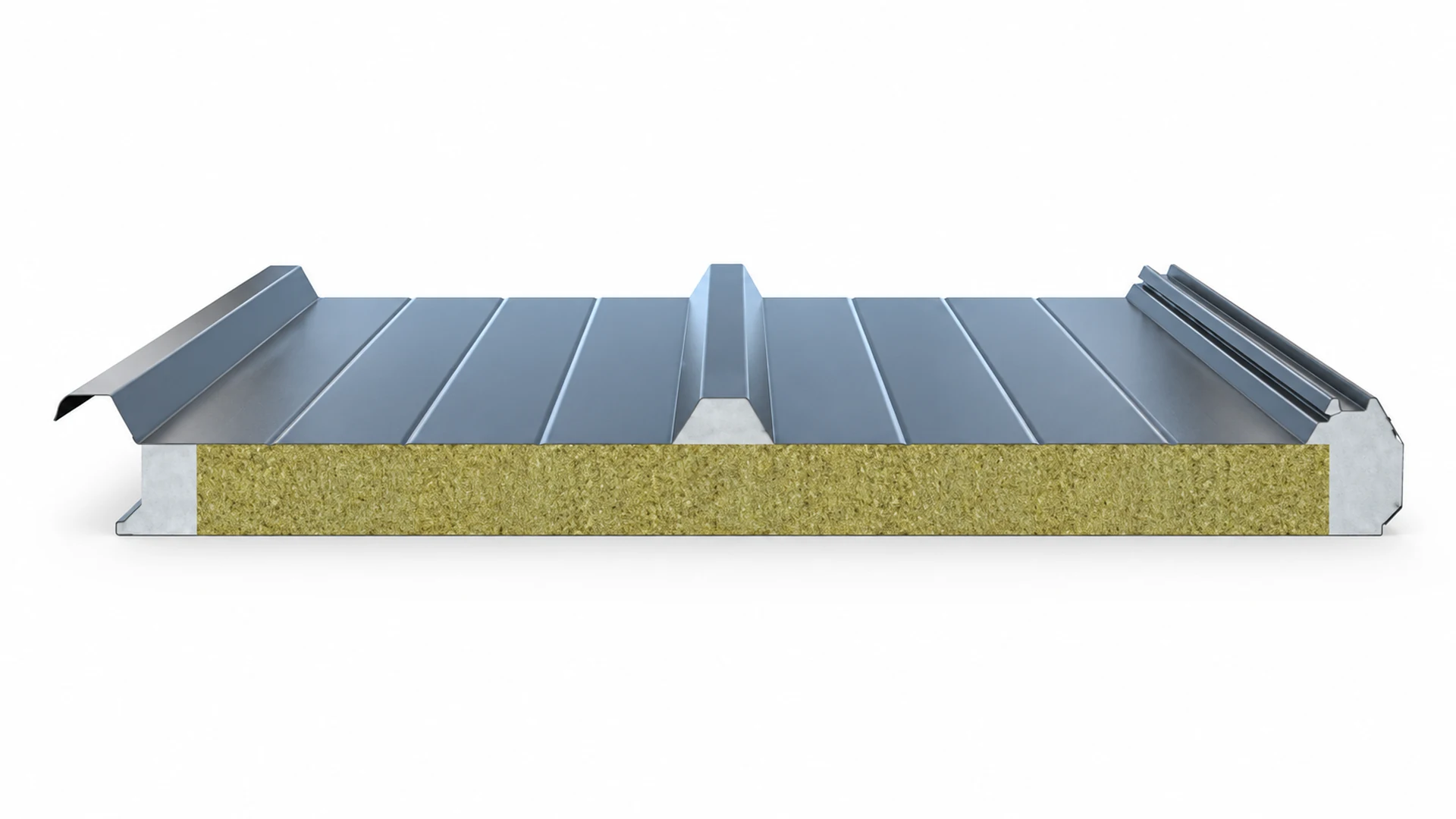

PU Edge-Sealed Rockwool Roof Panel

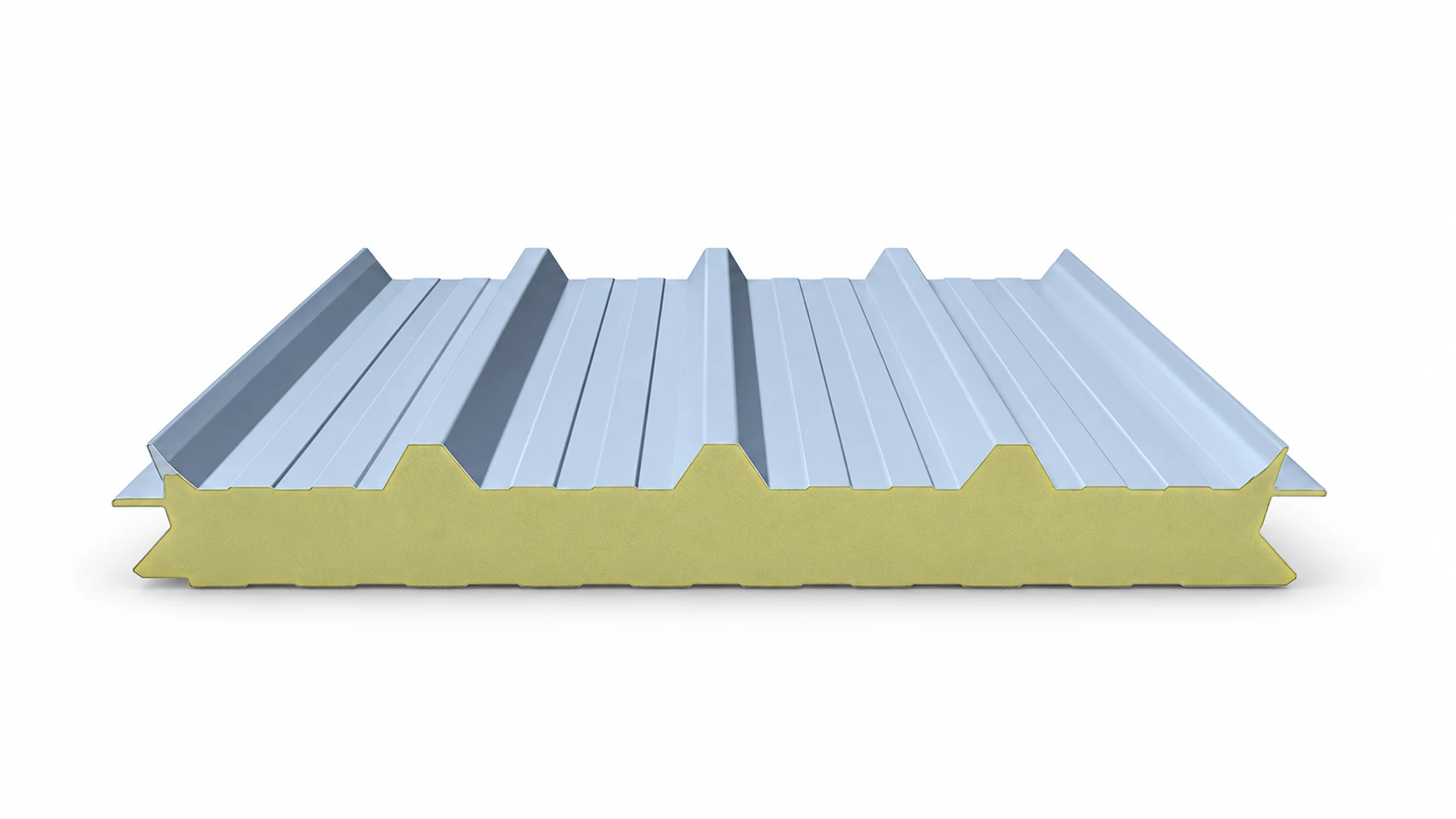

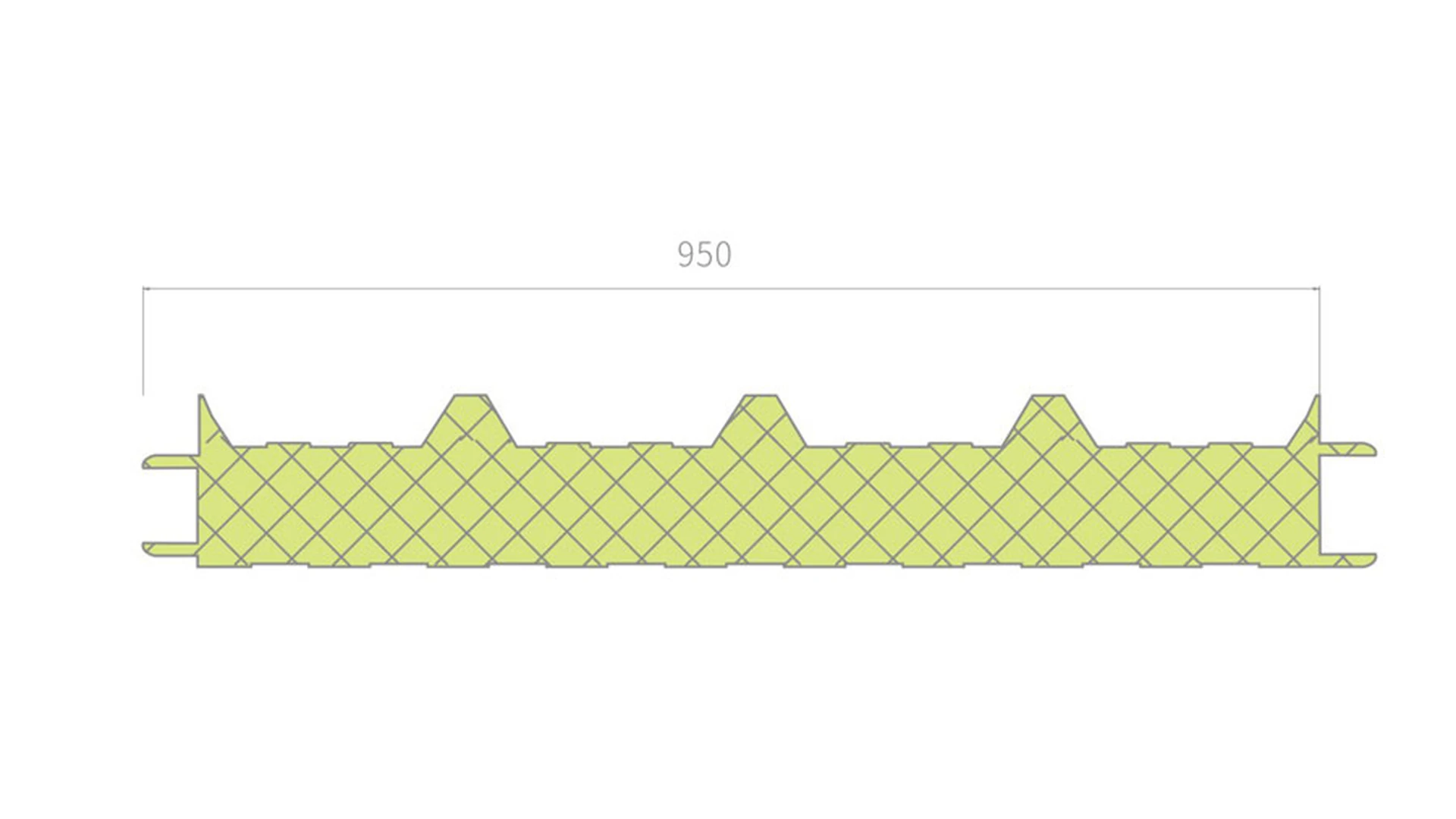

Rockwool Roof Panel
Single-skin
Profiled Sheeting
Single-skin profiled roofing — choose by rib height, pitch and effective cover. Higher rib carries longer spans.
| Model | Rib h. mm | Pitch mm | Eff. width mm | Thickness mm | Application |
|---|---|---|---|---|---|
| YX35-125-750 | 35 | 125 | 750 | 0.4–0.6 | Roof |
| YX35-130-780 | 35 | 130 | 780 | 0.4–0.6 | Roof |
| YX25-210-840 | 25 | 210 | 840 | 0.4–0.6 | Roof / wall |
| YX51-380-760 | 51 | 380 | 760 | 0.5–0.8 | Long span |
| YX56-410-820 | 56 | 410 | 820 | 0.5–0.8 | Long span |
| YX66-470 | 66 | — | 470 | 0.5–1.0 | Long span |
All profiles available galvanized (Z), Galvalume (AZ150) or pre-painted (PE / PVDF); coating Z60–Z275. Lengths cut to order.
Daylighting

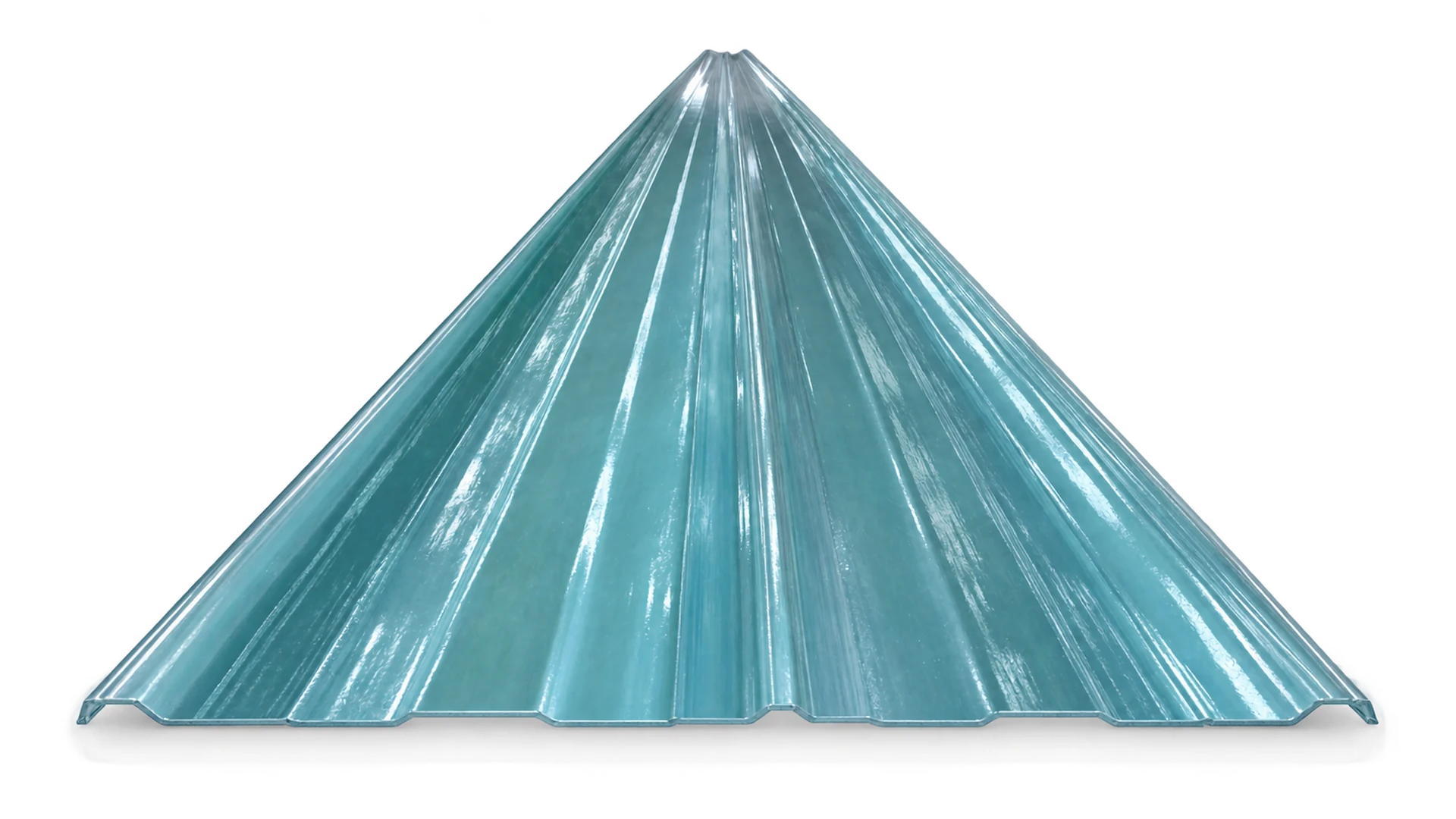

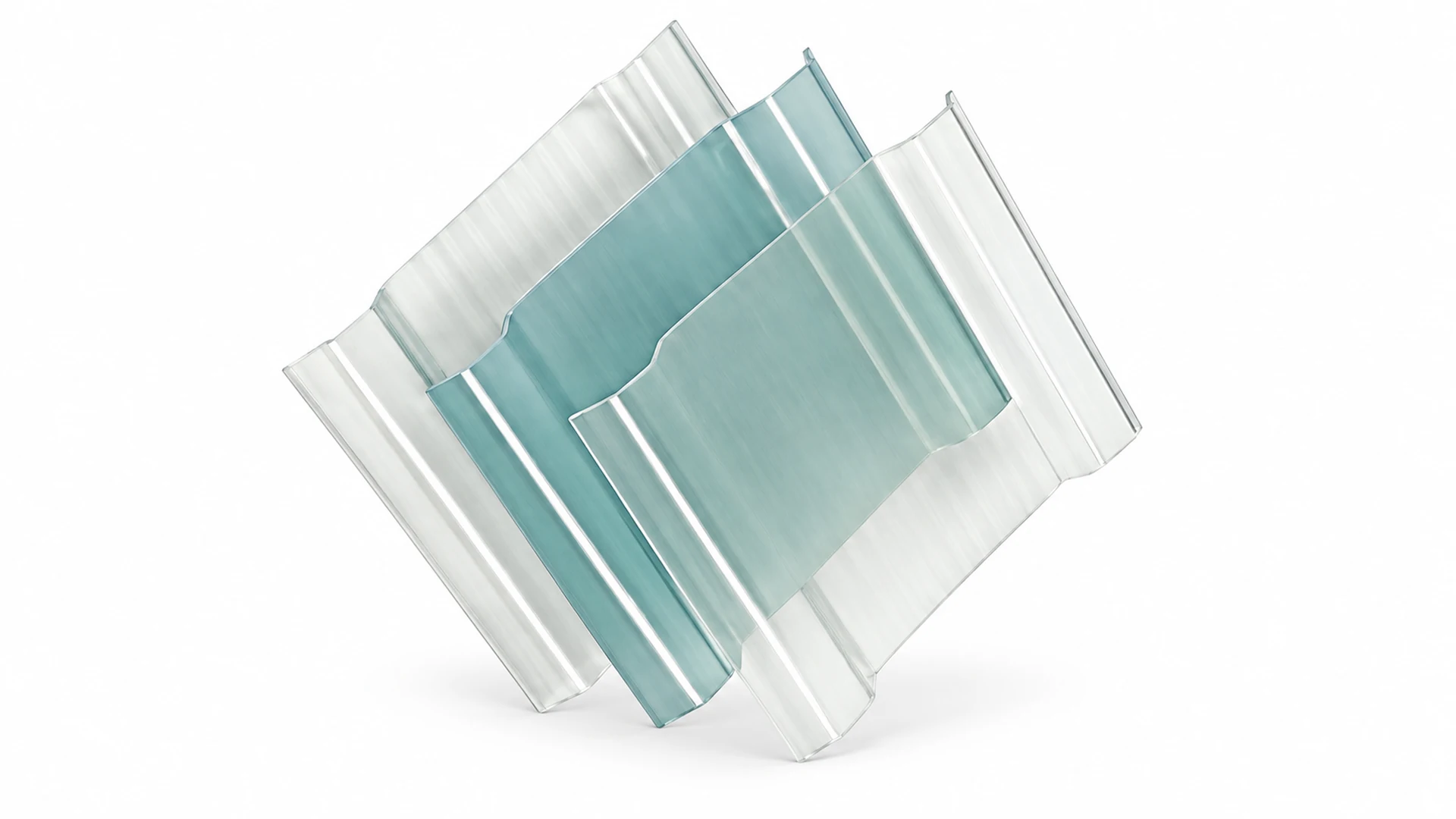

FRP Daylighting Sheet
Translucent fiberglass sheet, profile-matched to the steel sheeting for a flush, leak-free run.
FRP Daylighting Sheet
